Oil indicator

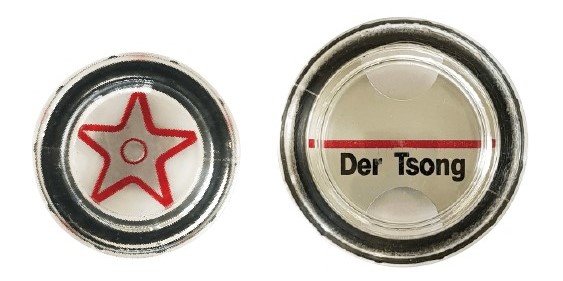

 OS-26 & OS-30

Oil indicator improves appearance and visibility since it made by the transparent special polyamide material.

Resistant to oil solvents, grease and other chemical agents. Max. working temperature：105 ºC (221 ºF) at normal pressure

Installation: plug-in
It can only be used in the oil tanks with small pressure or no pressure.

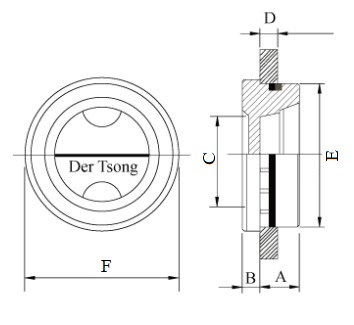

OS series construction

Model	A	B	C	D	E	Torlerance	F	M	R	Weight(g)
OS-26	7.5	3.5	18	6.5	Ø26	+1,-0	24.5	-	-	8
OS-30	8.5	4	24	7.5	Ø26	+1,-0	31.5	-	-	19

Unit of measurement：mm

HEX-M30 & HEX-M40


Installation: thread-in
The recommended torque is ≒ 1.5~1.8 kg-cm (0.147~0.176 Nm) when tightening the oil level indicator.


HEX series construction

Model	A	B	C	D	E	F	L	M	R	Weight(g)
HEX-M30	9	10	P1.5	35	30	24.5	-	-	-	8
HEX-M40	11.5	13	P1.5	47.5	41	31.5	-	-	-	19

Units of measurement：mm

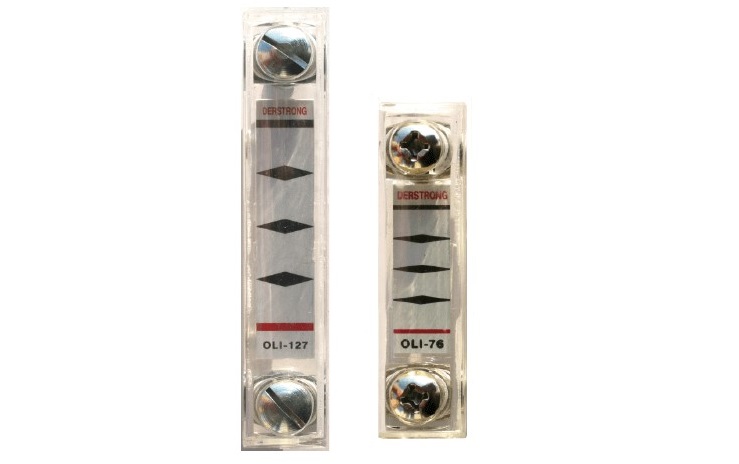

OLI76 & OLI-127(Include the lock screw)
It can resist the acidity and alkalinity of oil but should avoid cleaning by alcoholic liquid.
Max. working temperature: 105ºC (221ºF) at normal pressure.
The recommended torque is 8 Nm when tightening the oil level indicator.



OLI series construction

Model	A	B	C	D	E	F	L	M	R	Weight(g)
OLI-76	23	16	28	M10	40	76	107	18	15.5	75
OLI-127	23	18	31.5	M12	78	128	163	25	18	132
